Genuine OEM Turbocharger Install Kit
Turbo Gasket & Seal Kit — 2016–2019 Nissan Titan XD 5.0L Cummins Diesel
Everything you need to seal up the turbocharger correctly the first time. This complete OEM gasket and O-ring seal kit is assembled for the 5.0L Cummins (ISV5.0) V8 turbodiesel in the Nissan Titan XD. Whether you're installing a new, reman, or replacement turbocharger, fresh factory seals prevent boost leaks, oil weeping, and exhaust leaks — and protect your turbo investment.
Fits
2016–2019 Nissan Titan XD | 5.0L V8 Cummins Diesel (ISV5.0)

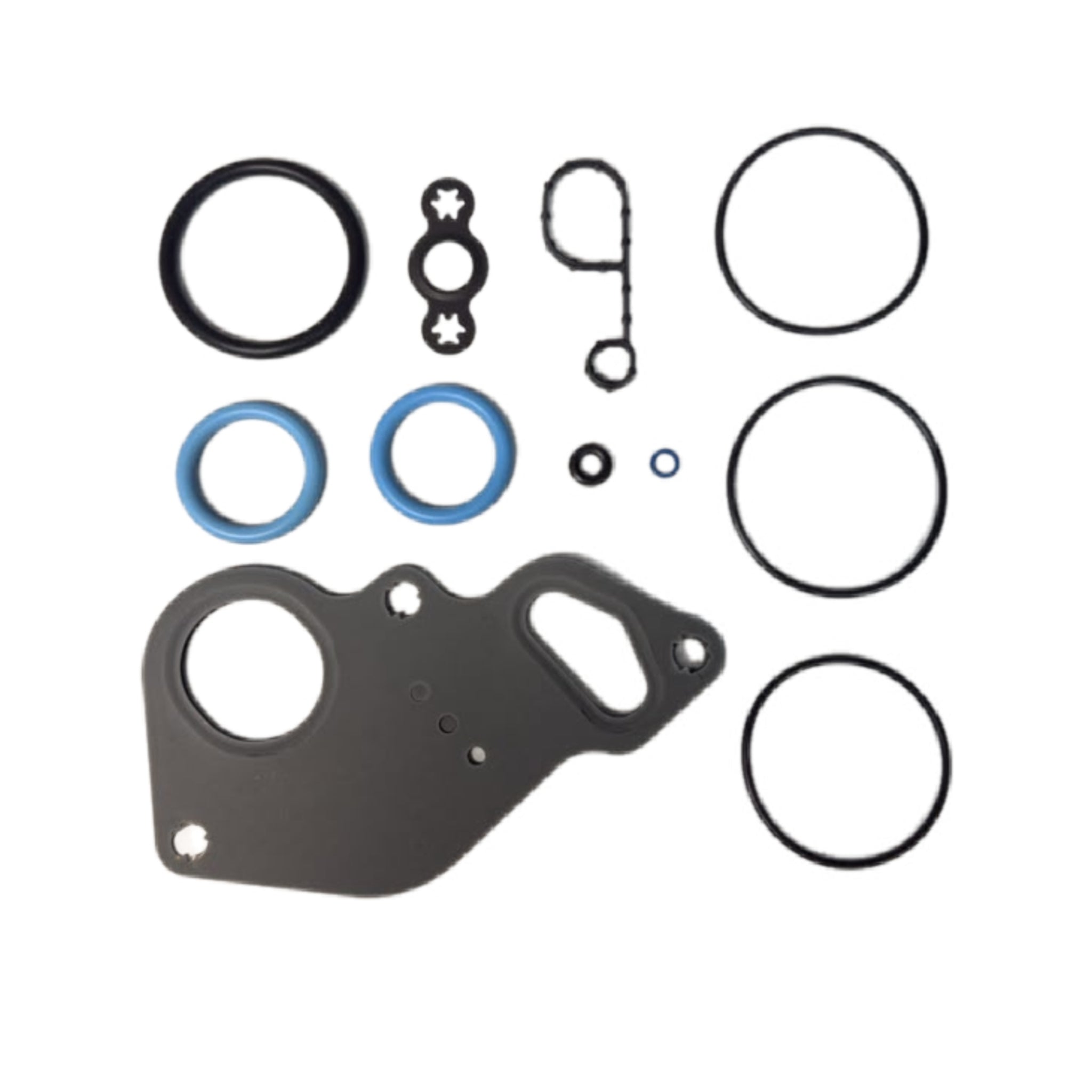

What's in the Kit

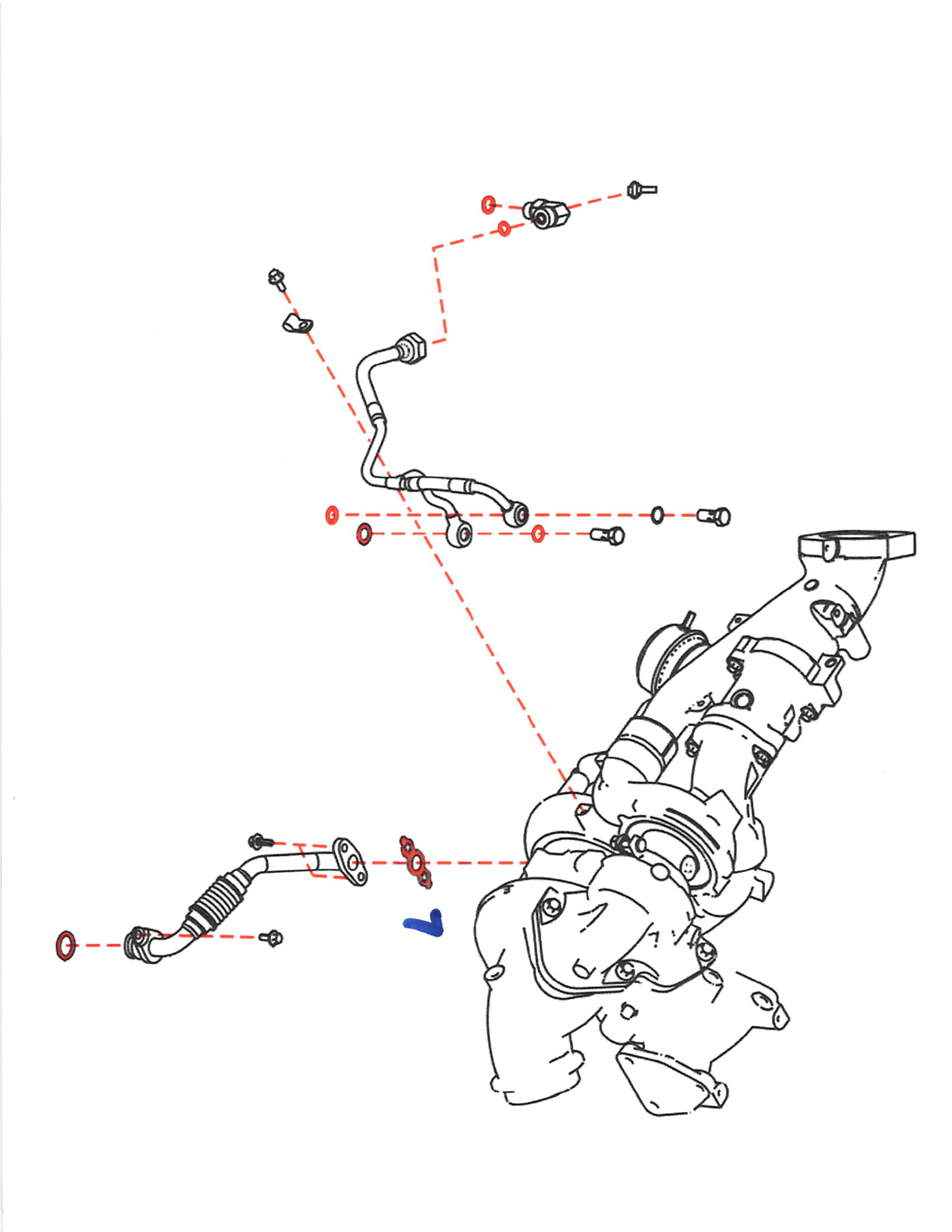

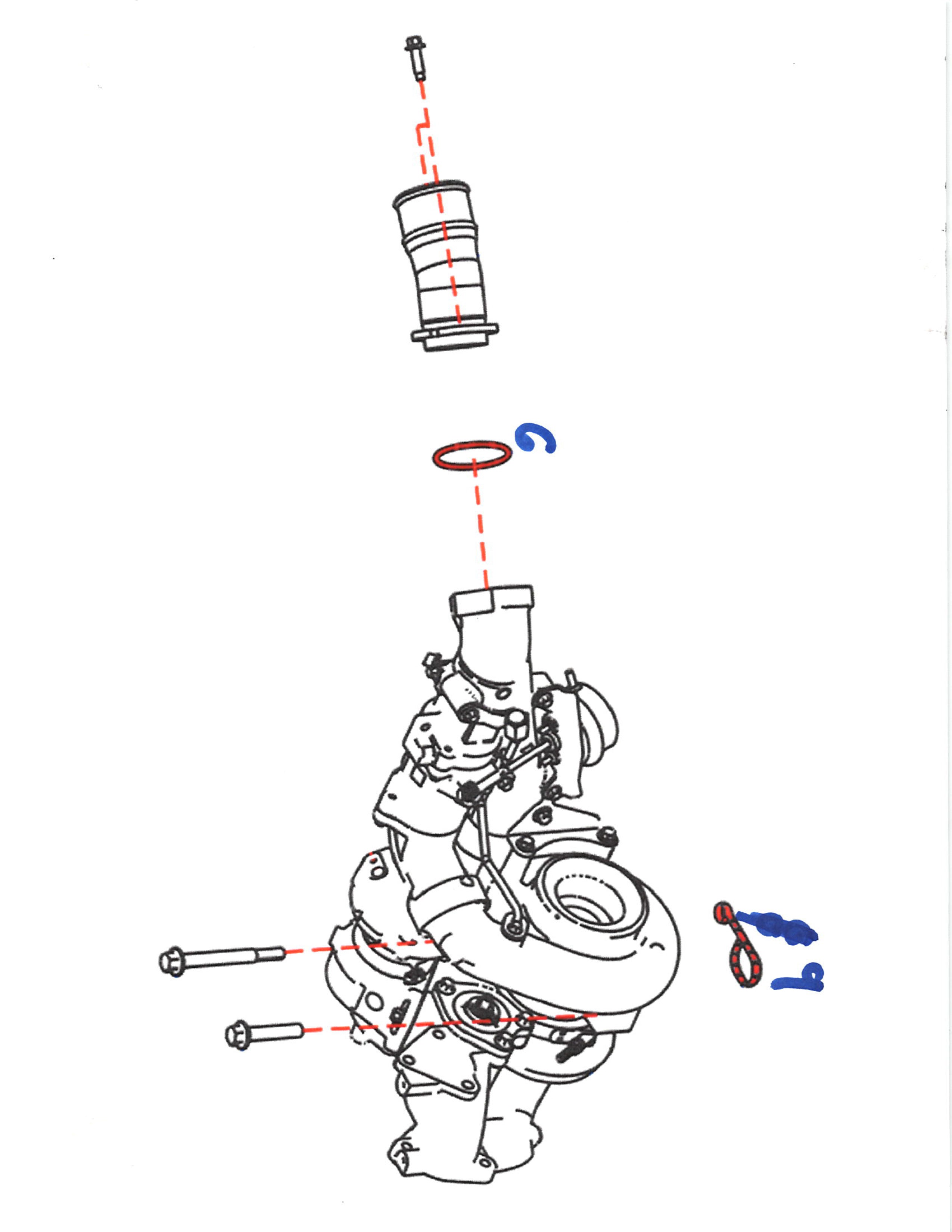

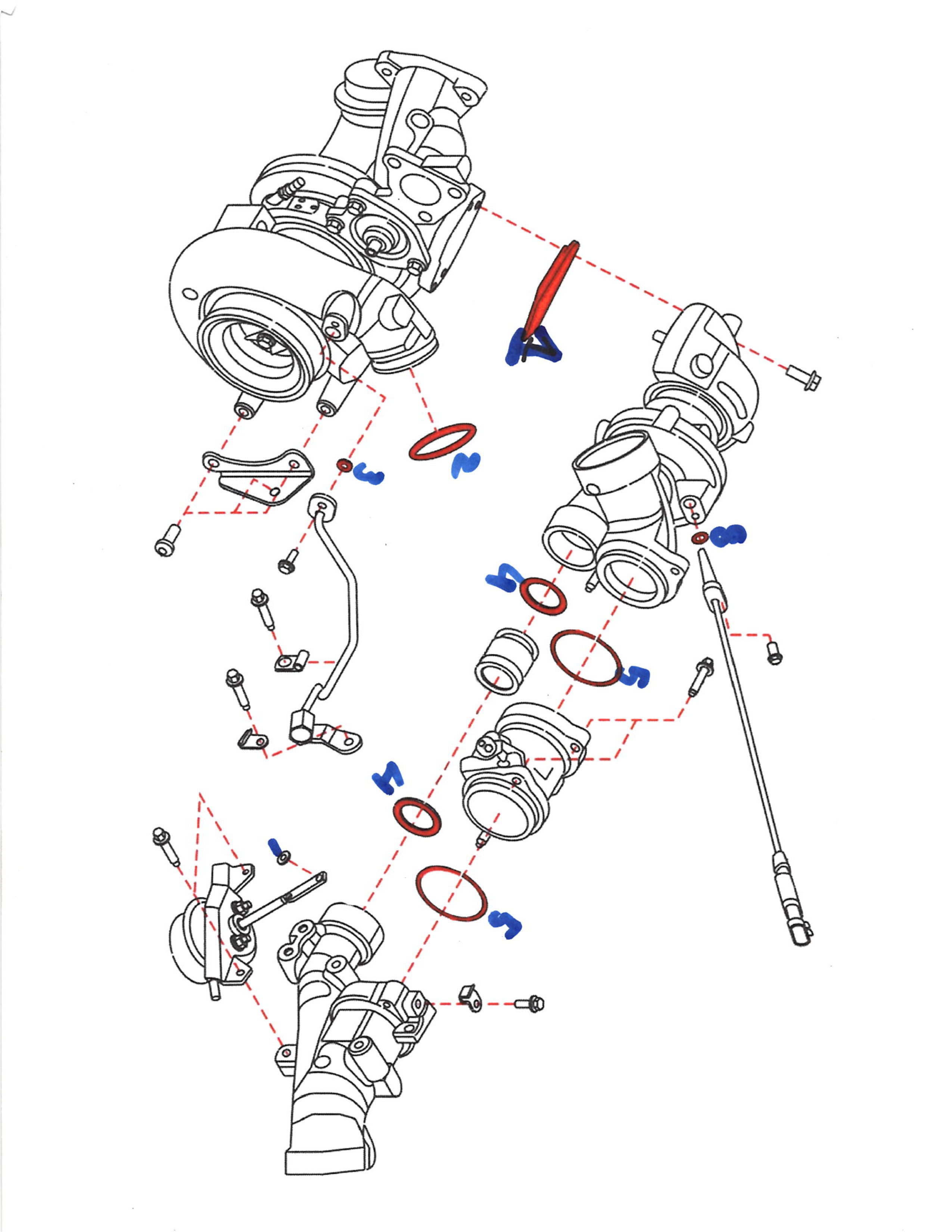

| # | OEM Part No. | Component | Qty |
|---|---|---|---|
| 1 | 14445-EZ40A | Turbocharger Outlet Gasket | 1 |
| 2 | 16569-EZ40A | Seal, O-Ring | 1 |
| 3 | 16569-EZ40D | Seal, O-Ring | 1 |
| 4 | 16569-EZ40C | Seal, O-Ring | 2 |
| 5 | 16569-EZ40B | Seal, O-Ring | 2 |
| 6 | 14465-EZ40A | Gasket, Inlet Tube | 1 |
| 7 | 15196-EZ40C | Turbocharger Oil Outlet (Return) Gasket | 1 |
| 8 | 22131-EZ40C | Seal, O-Ring | 1 |
| 9 | 15196-EZ40B | Turbocharger Oil Outlet (Return) Gasket | 1 |
| Total Pieces | 11 | ||
Why Choose This Kit
- ✓100% Genuine OEM — factory Nissan gaskets and seals built to exact OE spec for a leak-free seal.
- ✓Complete in one box — outlet, oil-return, and inlet-tube gaskets plus every O-ring seal needed for the turbo job.
- ✓Protects your turbo — reusing old, hardened gaskets is the #1 cause of post-install oil and boost leaks.
- ✓Correct fitment, guaranteed — application-matched part numbers, no guesswork.
Installation tip: Always replace turbocharger gaskets and O-rings during any turbo removal or replacement. Inspect oil feed and return lines for restriction before reassembly. Professional installation is recommended.
Part numbers and component names verified against the genuine Nissan OEM catalog. This is a sealing/gasket service kit and does not include the turbocharger assembly. Fitment shown for the Titan XD 5.0L Cummins diesel — confirm your VIN if unsure.
