What is the ProTurbo Turbocharger Diagnostic Matrix?

The ProTurbo Turbocharger Diagnostic Matrix is a free diagnostic reference tool that helps technicians and owners identify the root cause of turbocharger failure before replacing the unit. Often a defective turbocharger is caused by another primary engine defect — replacing the turbo without fixing the root cause results in the new turbo failing as well.

Why does my turbocharger keep failing?

Repeat turbocharger failures are almost always caused by an unresolved root cause problem in the engine system. Common causes include: (1) Oil contamination or low oil pressure. (2) Restricted air intake or clogged air filter. (3) Exhaust leaks or manifold cracks. (4) Excessive back pressure from clogged DPF. (5) Improper installation (incorrect oil lines, no pre-lubrication). (6) Incorrect turbocharger specification for the application. Use the ProTurbo Diagnostic Matrix to identify the actual cause before replacing the turbocharger.

What are the most common causes of turbocharger failure?

The most common causes of turbocharger failure are: (1) Oil starvation or contaminated oil — the leading cause. (2) Foreign object ingestion into the compressor or turbine. (3) Restricted air filter causing compressor surge. (4) Improper installation — wrong torque, no pre-lube, kinked oil lines. (5) Overboosting or excessive exhaust temperature. (6) Wrong turbocharger specification for the horsepower and application. Diagnosing the root cause before installation prevents repeat failures.

How do I diagnose a turbocharger failure?

To diagnose a turbocharger failure: (1) Check oil supply and drain lines for restriction, kinks, or contamination. (2) Inspect the air intake and filter for debris or restriction. (3) Check for exhaust leaks before the turbine. (4) Look for shaft play — axial and radial. (5) Check compressor and turbine wheels for damage. (6) Review fault codes (for VGT turbos). Use ProTurbo's free Turbocharger Diagnostic Matrix to match your symptoms to the likely root cause.

Can I diagnose a turbocharger failure myself?

Basic turbocharger diagnostics can be performed by experienced diesel technicians. Use ProTurbo's free Turbocharger Diagnostic Matrix to cross-reference symptoms with common failure indicators. However, for VGT (Variable Geometry Turbocharger) failures involving actuator codes or electronic faults, a diagnostic scan tool (such as Cummins INSITE or Davie4 for DAF) is required. Contact ProTurbo at 512-992-0000 for expert diagnostic assistance.

25% off UPS GROUND SHIPPING ONLINE ORDERS

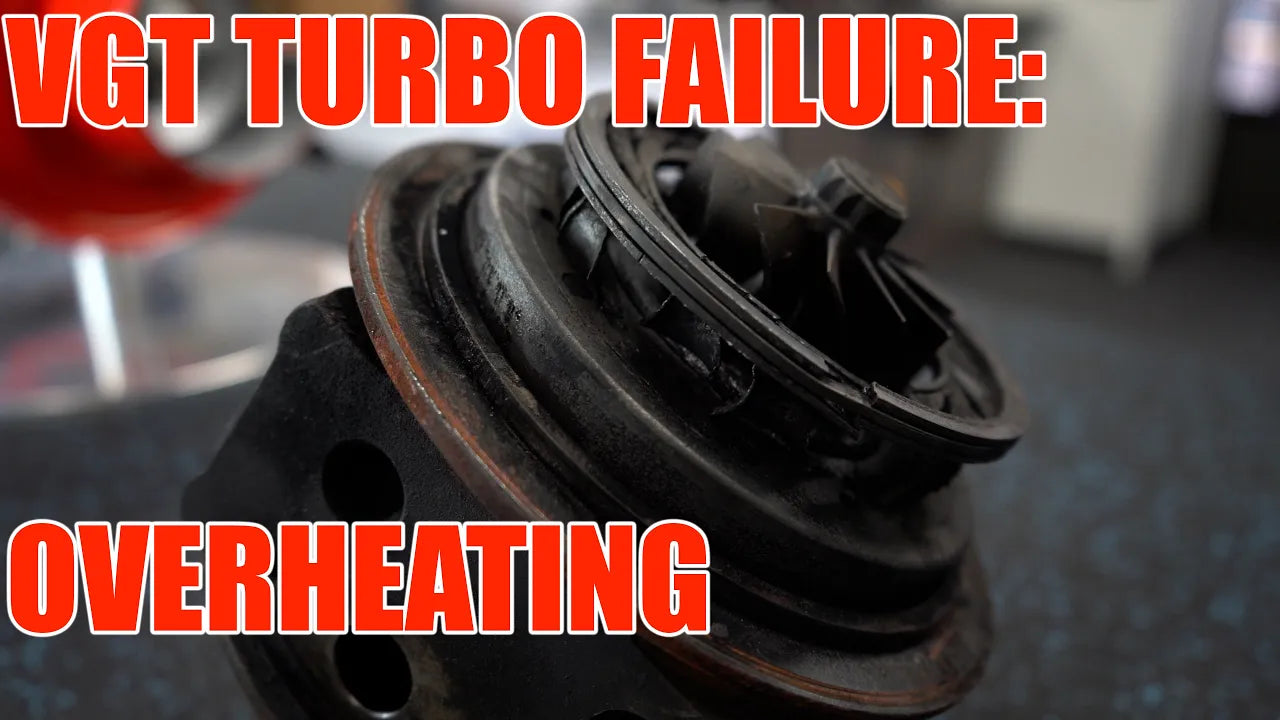

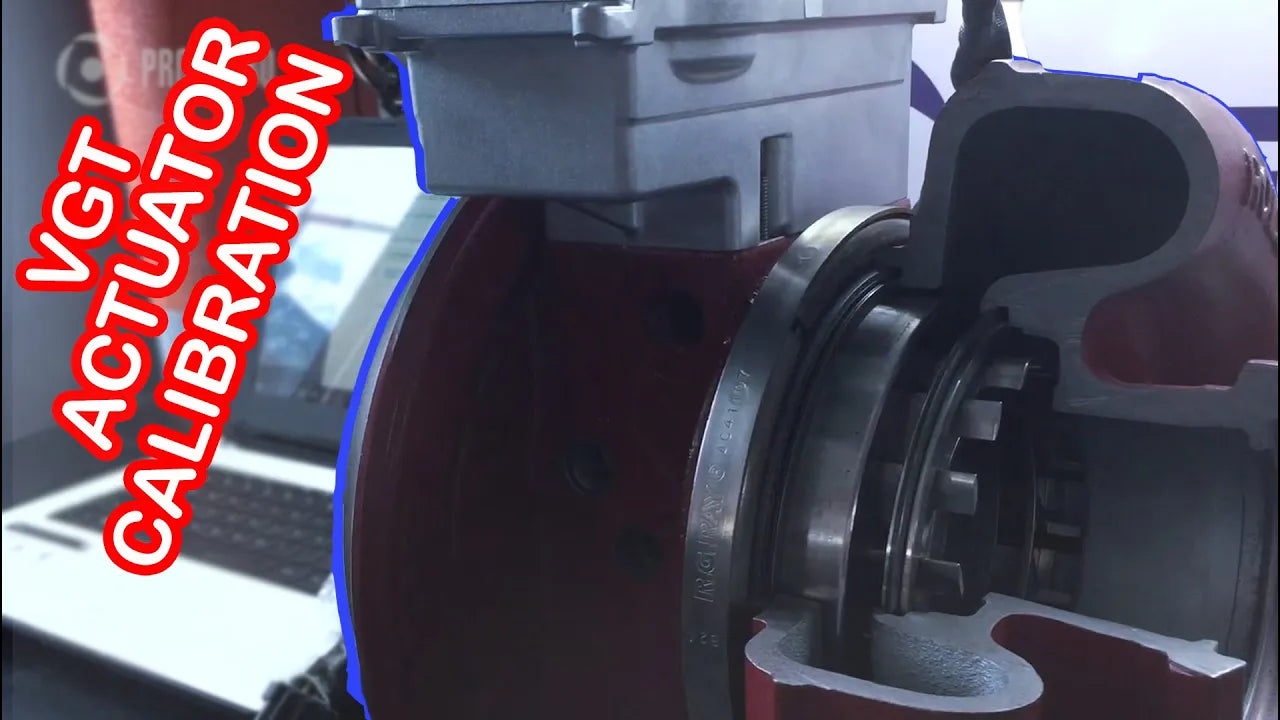

Videos on VGT Turbochargers:

Technical Videos

Often a defective turbocharger is the consequence of another primary engine defect. Use this matrix to identify the root cause of the failure before replacing the turbocharger.
