Description
Product details
Condition: New
Brand: Garrett
Component OEM: Garrett
Model: GTA3776D
Cross References
170-025-0300
170-025-1705
1700250300
1700251705
1830493C91
1830493C92
1830493C93
1830494C91
1830494C92
1830494C93
1836092C91
1836092C92
1836092C93
1841856C91
19700072D
2506787C91
2506791C91
3776-0001
37760001
40010706
40010707
4307246R91
500045
500477
500\045
500\477
704194-0003
704194-0004
704194-0007
704194-0008
704194-0015
704194-0016
704194-5003
704194-5004
704194-5007
704194-5008
704194-5015
704194-5016
7041940003
7041940004
7041940007
7041940008
7041940015
7041940016
7041945003
7041945004
7041945007
7041945008
7041945015
7041945016
715137-0005
715137-5005
7151370005
7151375005
729161-0005
729161-0006
729161-5005
729161-5005S
729161-5006
729161-5006S
729161-9005
729161-9006
7291610005
7291610006
7291615005
7291615005S
7291615006
7291615006S
7291619005
7291619006
8G37-200-L13-0001
8G37200L130001
F430137R1
F4307137R1
F4307155R1
T1775-01
T177501
TS704194-5016
TS704194-9016R
TS7041945016
TS7041949016R
TS729161-5005
TS729161-9005R
TS7291615005
TS7291619005R
Warranty
Garrett 1-Year Limited Warranty
Covered by Garrett Motion's factory limited warranty against defects in materials and workmanship from the date of invoice. Claims subject to Garrett inspection and approval.
Installation and care
Average replacement time: 8 hours
Skill level: Service Technician "B" or higher
Initial inspection and general care
- Carefully inspect the air cleaner, air cleaner duct, and the exhaust manifold for any foreign material. Objects left in these areas can severely damage the turbocharger immediately on engine startup.
- Remove old gaskets and left-over material from the exhaust manifold, the oil supply line and oil drain line flanges. Inspect these surfaces for cracks, flatness, or erosion.
- Inspect the oil supply and drain lines for degradation and cracking.
- Make sure that there are no kinks or any other type of restriction or clogging in either line.
Shipping and returns
Please review policy here.

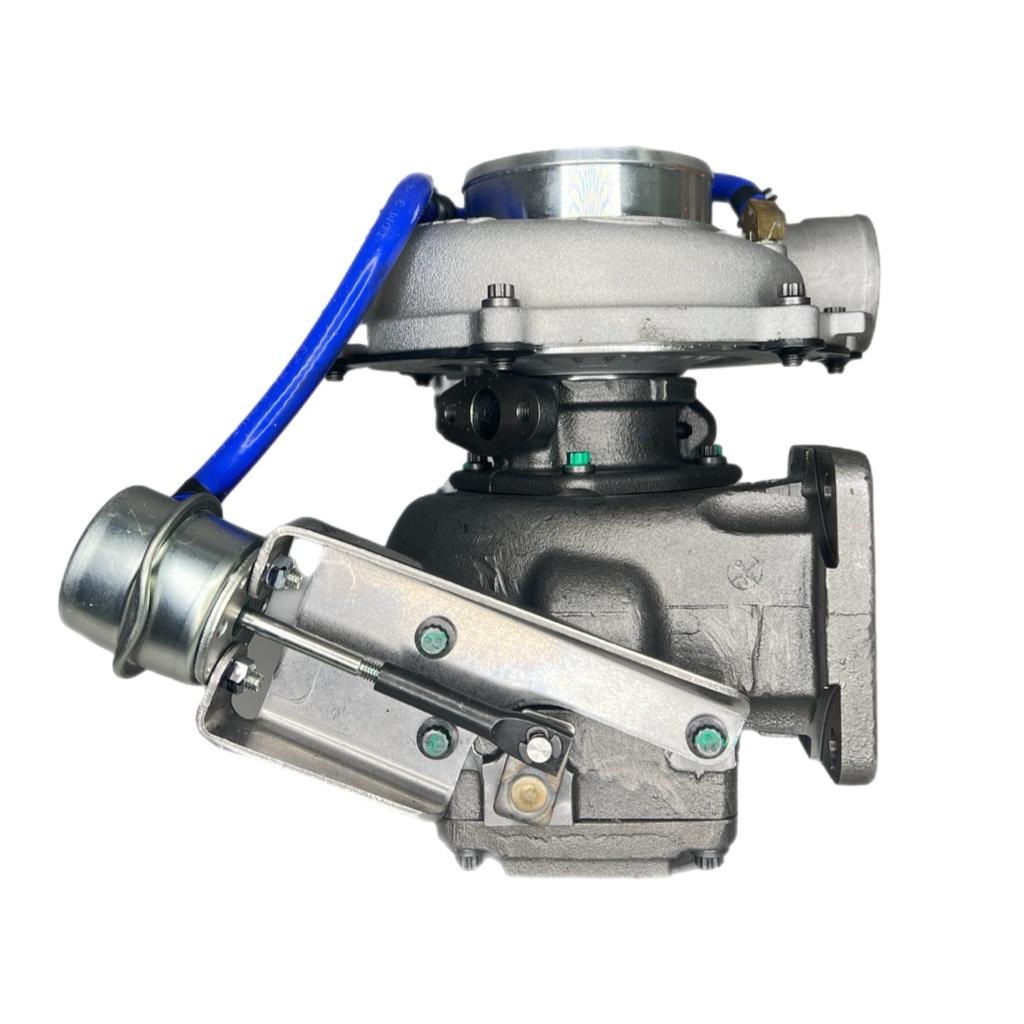

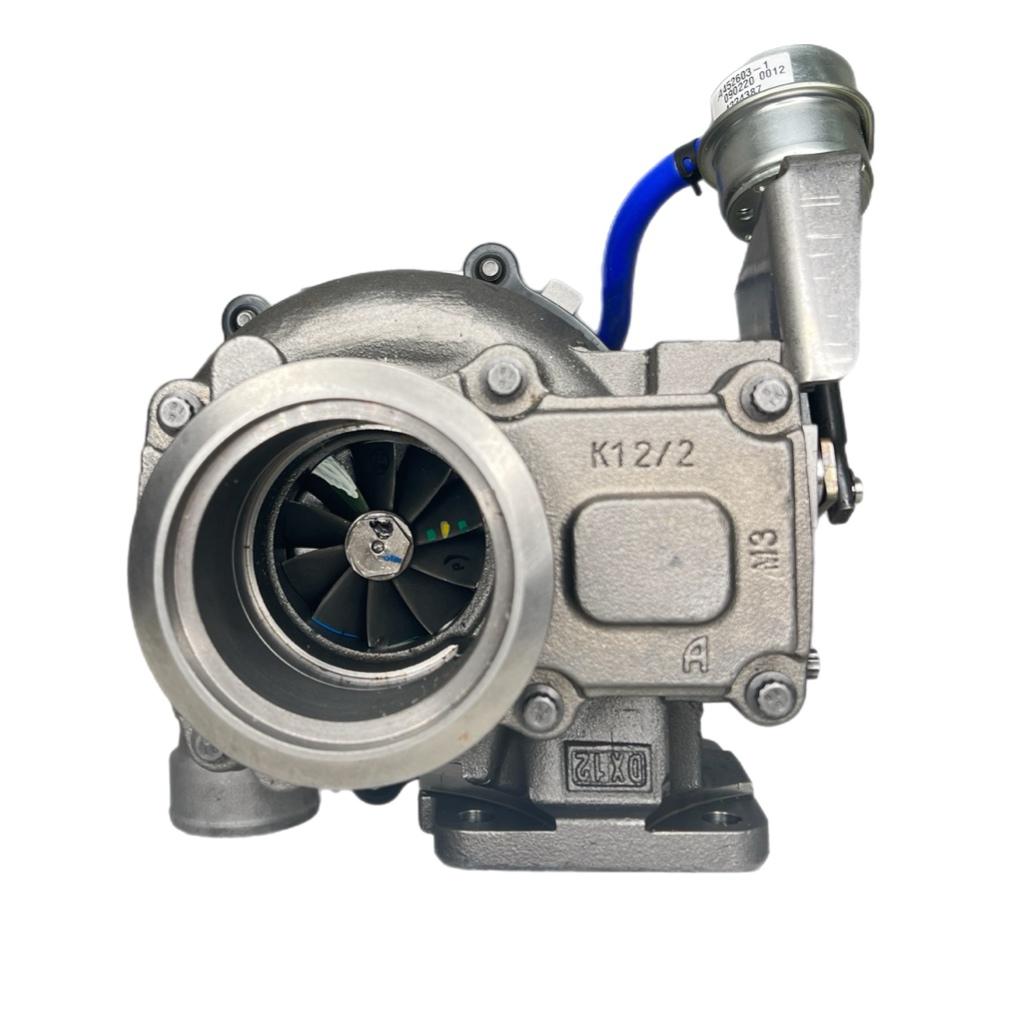

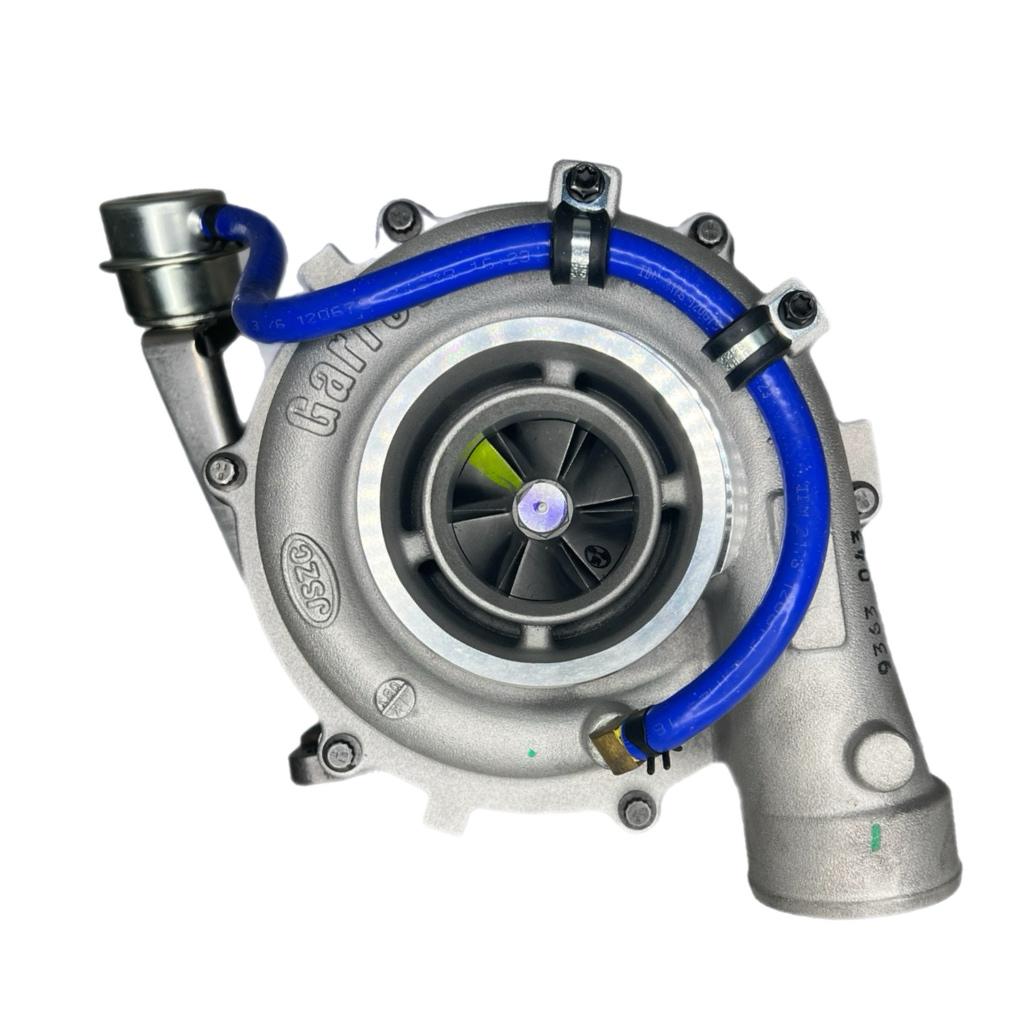

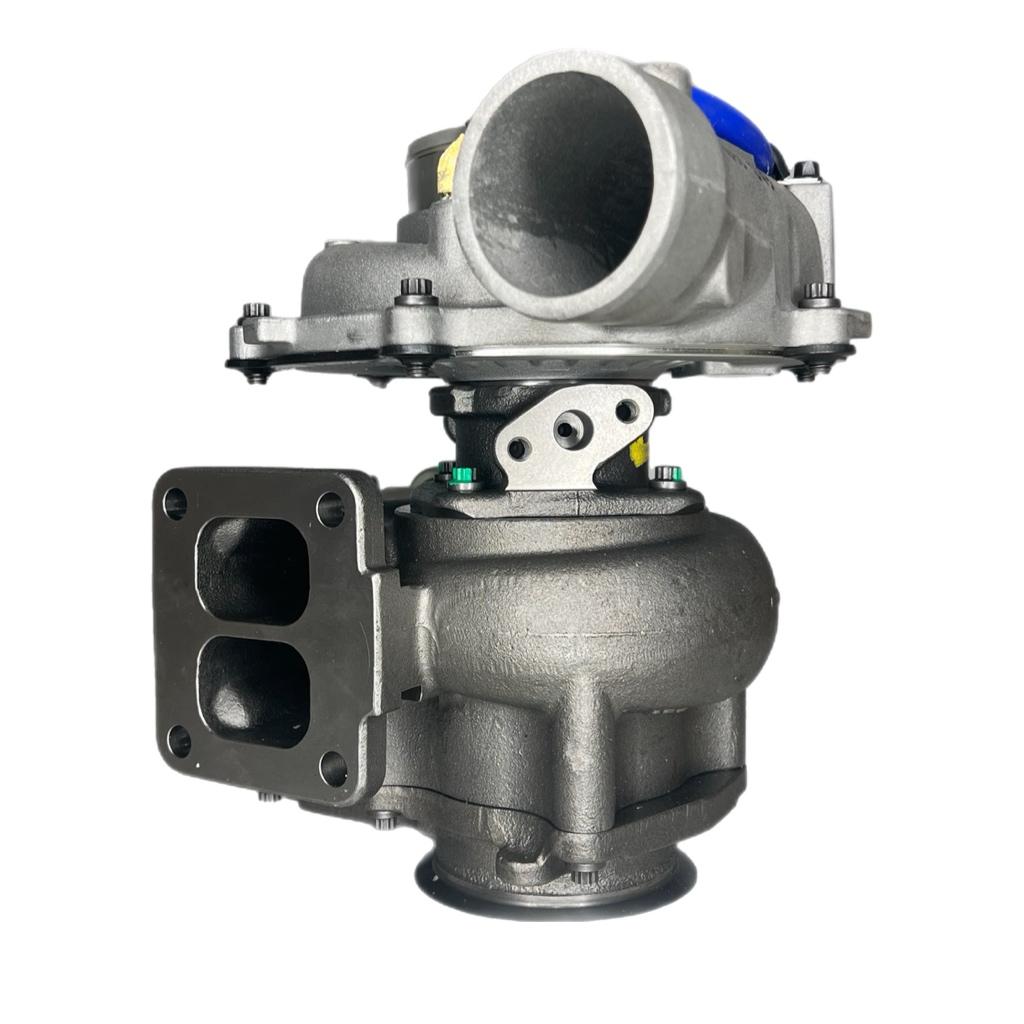

This is a New Garrett Turbocharger DT466 729161-5006S.
