Product details

Condition: New

Brand: Dillo Turbo

Component OEM: BorgWarner

Model: K03

Warranty policy:

Cross References	001570836	030TC20022000	030TC20022100
	06F-145-701-B	06F-145-701-C	06F-145-701-D
	06F-145-701-E	06F-145-701-F	06F-145-701-G
	06F-145-701-H	06F-145-701-HX	06F145701B
	06F145701C	06F145701D	06F145701E
	06F145701F	06F145701G	06F145701H
	06F145701HX	100TBC538	100TBC538S
	1570836	170-070-0389	1700700389
	21809	220-01-4107	220014107
	281228	2N-515	2N515
	2T-515	2T515	5303-970-0086
	5303-970-0105	5303-988-0086	5303-988-0105
	53039700086	53039700105	53039880086
	53039880105	667-223	667223
	829-929-9510	8299299510	BWT31318
	K1030134N	K8030186R	TBC538
	TBC538S	X-407	X407

Installation and care

AVERAGE REPLACEMENT TIME

8 hours

SKILL LEVEL

Service Technician “B” or higher

INITIAL INSPECTION AND GENERAL CARE

1. Carefully inspect the air cleaner, air cleaner duct, and the exhaust manifold for any foreign material. Objects left in these areas can severely damage the turbocharger immediately on engine startup.
2. Remove old gaskets and left-over material from the exhaust manifold, the oil supply line and oil drain line flanges. Inspect these surfaces for cracks, flatness, or erosion.
3. Inspect the oil supply and drain lines for degradation and cracking.
4. Make sure that there are no kinks or any other type of restriction or clogging in either line.

Shipping and returns

Please Review policy here

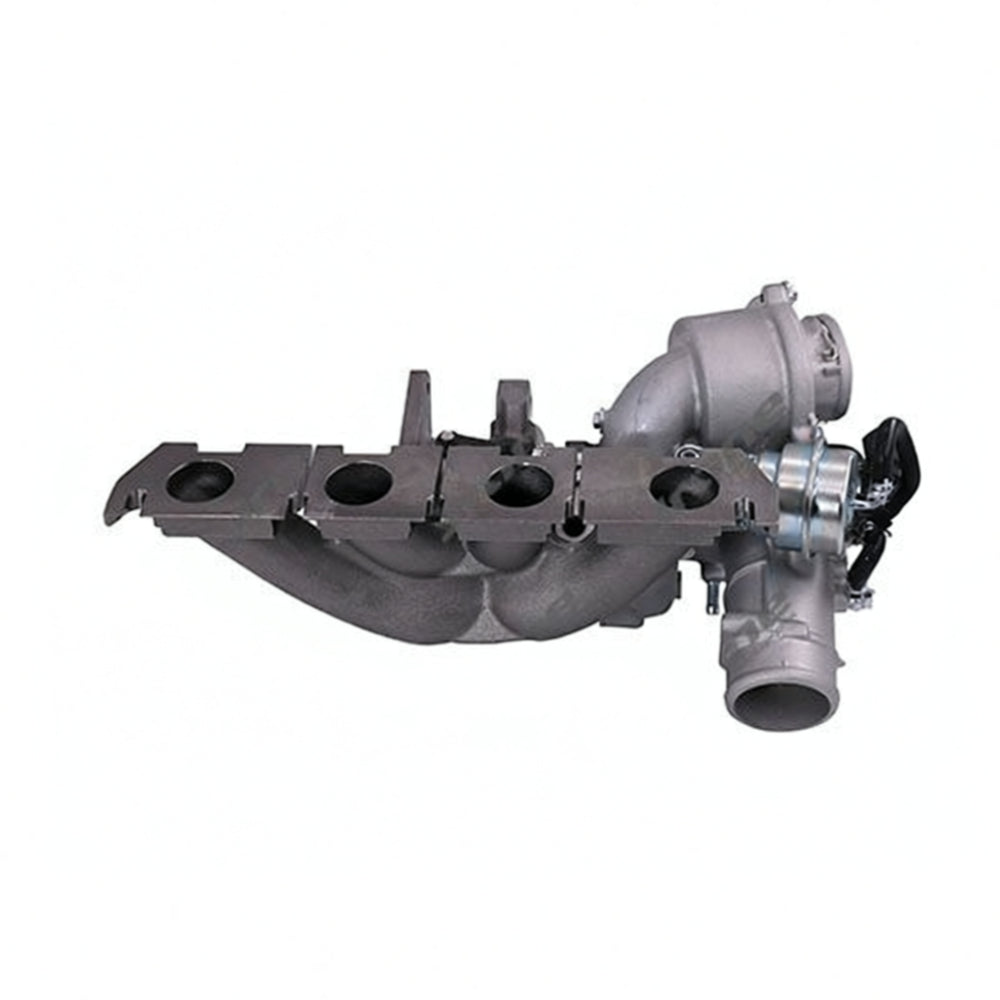

This is a Dillo turbo for VW 06F145701H

All our products are Shipped from Austin Texas the same day if ordered before 4:00 PM (Some wholesalers we drop-ship directly from the manufacturer, contact your sales representative for shipping times), we Use Ground UPS shipping you can find a map for Delivery times in this link to estimate your shipping
